DVS 801

DVS 1.0 SERIES DVS 801
The DVS 801 is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 801 offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 801 the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling.

Exceptional Sound and Reliability

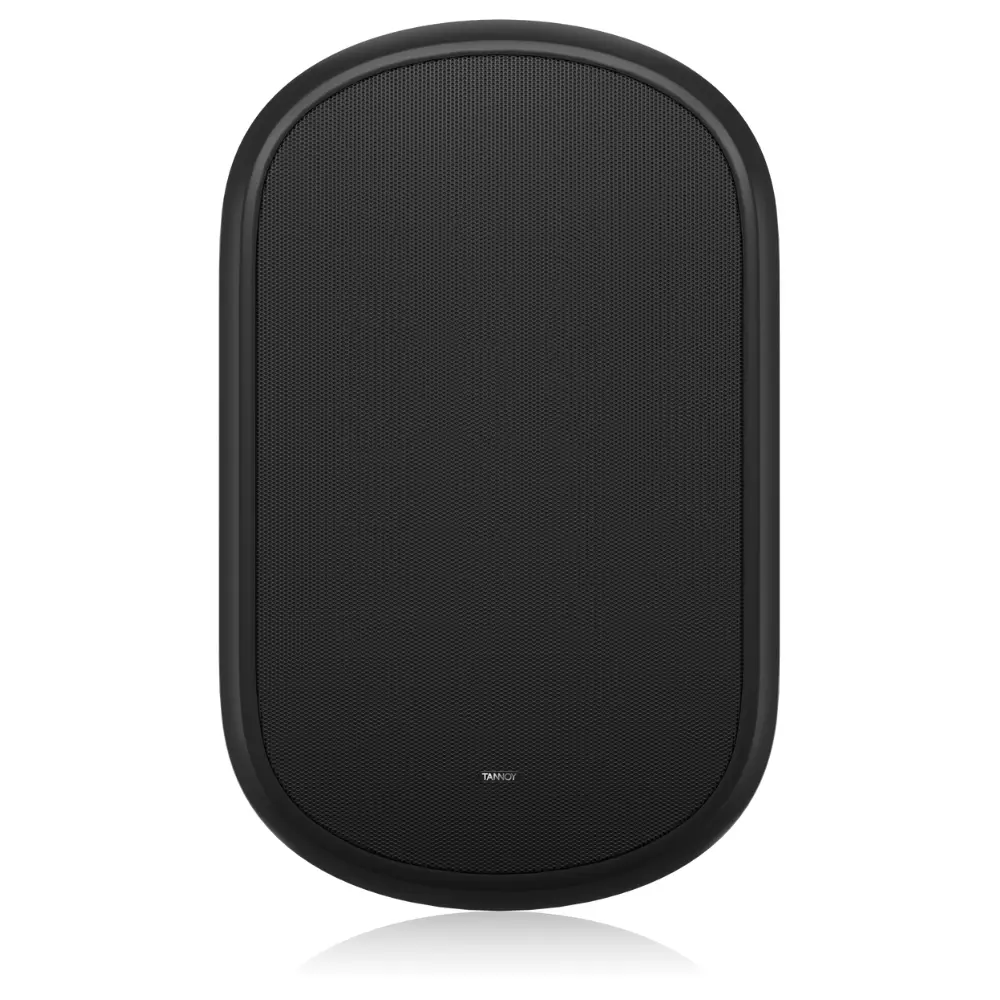

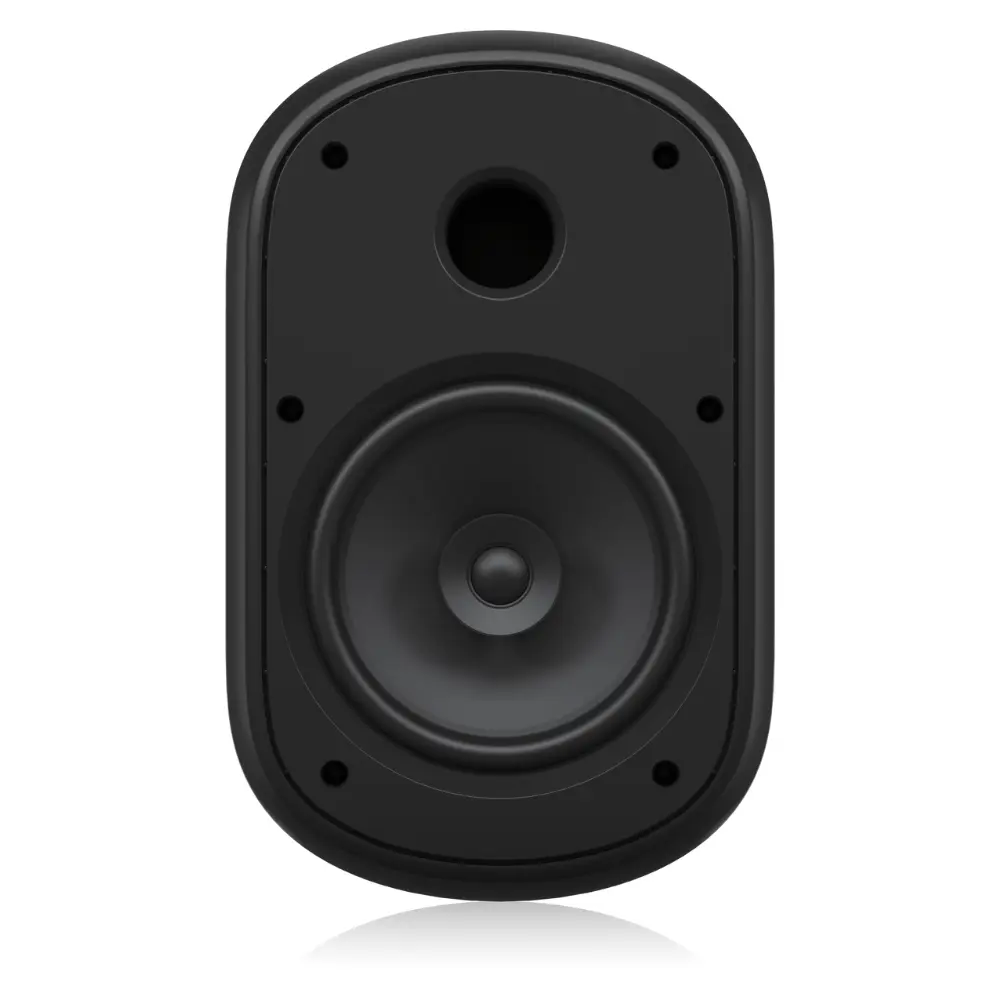

The design comprises a 200 mm (8.00″) polypropylene full-range driver and 1.00″ ferrofluid cooled soft dome high frequency driver mounted in a UV and weather resistant UL 94-V0 ABS enclosure. Dust protection is provided in the form of an attractive aluminium mesh grille. The paper cone material and butyl rubber surround enhance durability and long-term reliability. DVS 801 is specifically designed for applications requiring the combination of excellent music and speech sound quality and exceptional reliability.

Weather-Resistant Enclosure

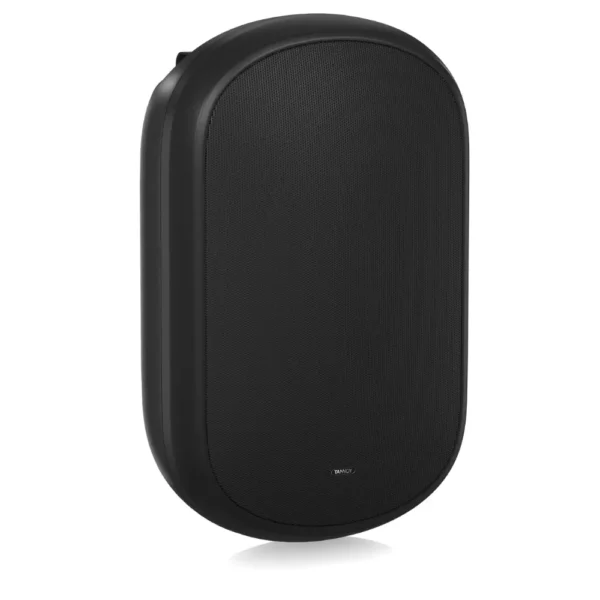

The elegantly styled semi-matt black moulded enclosure blends beautifully into any décor. Additionally, the DVS 801 design and performance has achieving an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Architecture and Engineering Specifications
The speaker shall be of the full range, two-way passive type consisting of one 8″ (200 mm) LF driver and one 1.0” (25 mm) HF driver. Performance specifications of a typical production unit shall meet or exceed the following: frequency response, measured with swept sine wave input, shall be flat within ±3 dB from 85 Hz to 20 kHz and within -10 dB from 75 Hz to 20 kHz. Nominal dispersion, at -6 dB points, shall be 82° conical, averaged 1kHz – 10 kHz. Nominal impedance shall be passive: 8 Ohms.

Power handling shall be passive: 60 Watts continuous, 240 Watts peak. Sensitivity, measured on axis, mean averaged over the stated bandwidth, shall be 88 dB, 1 Watt @ 1 metre. Maximum SPL of 106 dB average measured at 1 m under free field conditions, using unweighted pink noise.

Dimensions: 398 mm high x 251 mm wide x 198 mm deep (15.7″ x 9.88″ x 7.80″). Net weight: 8.7 kg (19.2 lbs). The loudspeaker system shall be the Tannoy DVS 801. No other loudspeaker shall be acceptable unless submitted data from an independent test laboratory verifies that the above combined performance/size specifications are equalled or exceeded.
